BLOWER MOTOR REMOVAL/INSTALLATION

id071100005900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Disconnect the blower motor connector.

am6xuw00009411

4.  Remove the screws.

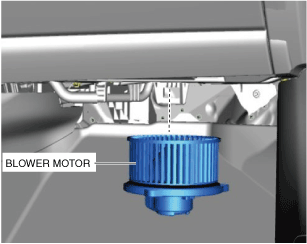

5.  Remove the blower motor.

am6xuw00009412

6.  Install in the reverse order of removal.
