FRONT HEAT DUCT REMOVAL/INSTALLATION

id071100307100

Driver’s side

1.  Remove the driver-side side wall. (See SIDE WALL REMOVAL/INSTALLATION.)

2.  Insert a flathead screwdriver in the position shown in the figure (1), lift it up in the direction of the arrow (2).

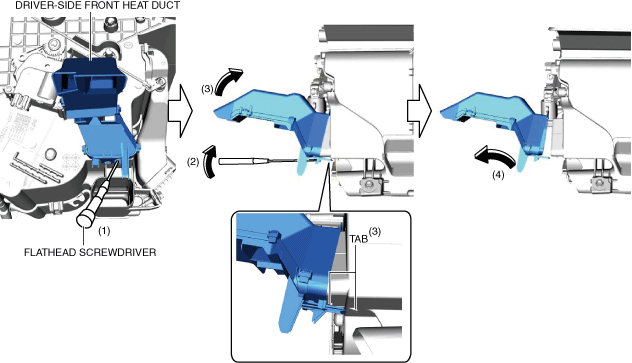

am6xuw00009426

3.  Detach the tab while lifting up the driver-side front heat duct in the direction of the arrow (3).

4.  Remove the driver-side front heat duct (4).

5.  Install in the reverse order of removal.

Passenger’s side

1.  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

2.  Insert a flathead screwdriver in the position shown in the figure (1), lift it up in the direction of the arrow (2).

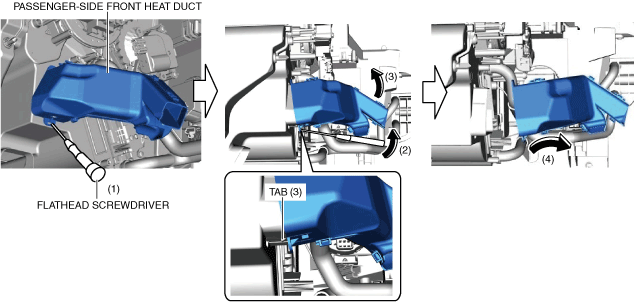

am6xuw00009427

3.  Detach the tab while lifting up the passenger-side front heat duct in the direction of the arrow (3).

4.  Remove the passenger-side front heat duct (4).

5.  Install in the reverse order of removal.
