AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION


id074000803200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

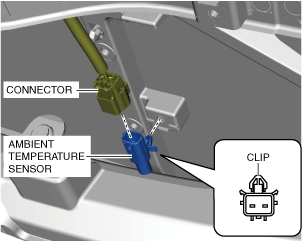

3.  Disconnect the connector.

am6zzw00016090

4.  Detach the clip and remove the ambient temperature sensor.

5.  Install in the reverse order of removal.
