REARVIEW MIRROR REMOVAL/INSTALLATION

id091200009200

1.  Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)

2.  Loosen the screw.

am6xuw00011645

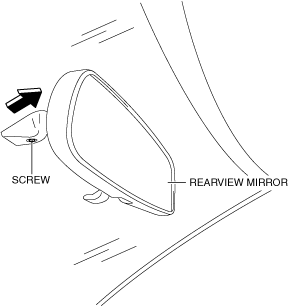

3.  Pull the rearview mirror in the direction of the arrow shown in the figure.

4.  Install in the reverse order of removal.
