Note

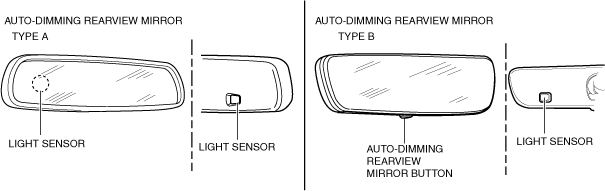

• There are two types of auto-dimming rearview mirror. Verify the auto-dimming rearview mirror shape before performing the procedures.
am6zzw00017188
|
AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION
id091200016000
am6zzw00017188
|
Type A
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)

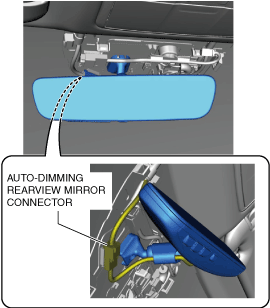

3. Disconnect the auto-dimming rearview mirror connector.
am6zzw00017181
|

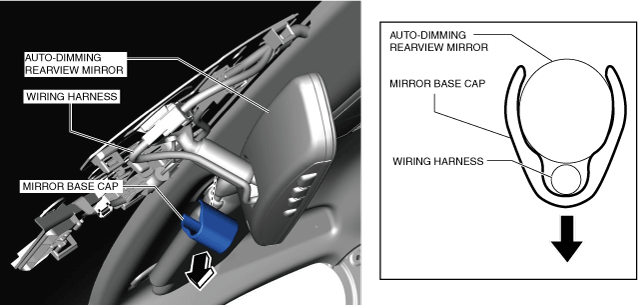

4. Move the mirror base cap in the direction of the arrow shown in the figure and remove it.
am6xuw00012271
|

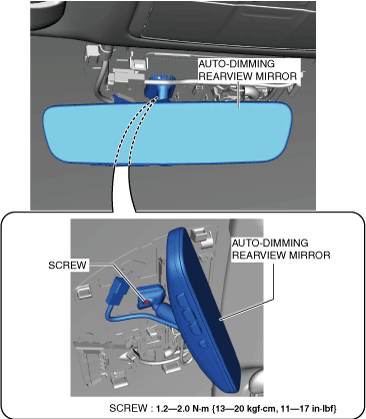

5. Loosen the screw.
am6xuw00012272
|
6. Remove the wiring harness from the bracket.
am6xuw00012273
|
7. Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.
am6xuw00012274
|
8. Install in the reverse order of removal.
Type B
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)

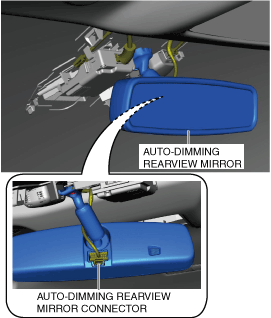

3. Disconnect the auto-dimming rearview mirror connector.
ac8wzw00000947
|

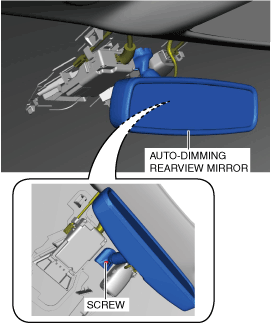

4. Loosen the screw.
ac8wzw00000948
|
5. Move the auto-dimming rearview mirror in the direction of the arrow shown in the figure and remove it from the mirror base.
ac8wzw00000949
|
6. Install in the reverse order of removal.
