DOOR LOCK-LINK SWITCH INSPECTION

id091400511500

Front Door Lock-link Inspection

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(5)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(6)  Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

(7)  Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

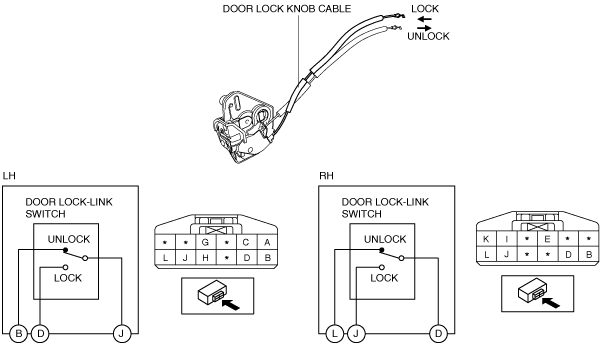

4.  When the door lock knob cable is pulled or pressed in, verify that the continuity is as indicated in the table.

am3uuw00004540

am6zzw00010857

•  If not as indicated in the table, replace the front door latch and lock actuator.

Rear Door Lock-link Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Glass guide (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(3)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Rear power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

(5)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(6)  Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

3.  If the door lock condition is to be inspected, pull the door lock knob cable, or press it in.

4.  Verify that the continuity is as indicated in the table.

am3uuw00004540

am6zzw00010858

•  If not as indicated in the table, replace the rear door latch and lock actuator.
