REAR DOOR LATCH SWITCH INSPECTION

id091400511900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Glass guide (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)

(3)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Rear power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

(5)  Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)

(6)  Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

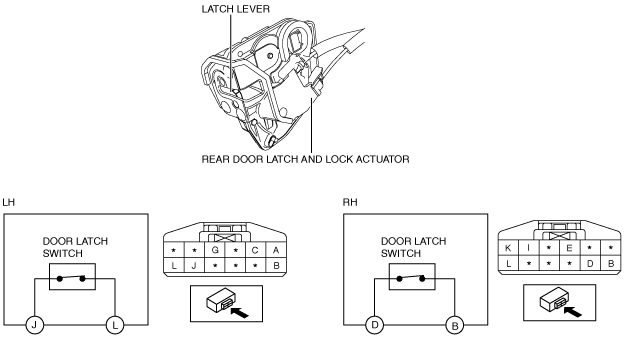

3.  Verify that the continuity is as indicated in the table.

ac5jjw00000042

am6zzw00010860

•  If not as indicated in the table, replace the rear door latch and lock actuator.

Note

•  When inspecting the latch side of the rear door latch switch, press in the latch lever using a flathead screwdriver and set it to the latched position.

ac5jjw00000020
