REAR DOOR LOCK ACTUATOR INSPECTION
id091400512000
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)
-
- (2) Glass guide (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)
-
- (3) Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
-
- (4) Rear power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION.)
-
- (5) Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
-
- (6) Rear door latch and lock actuator (See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
-

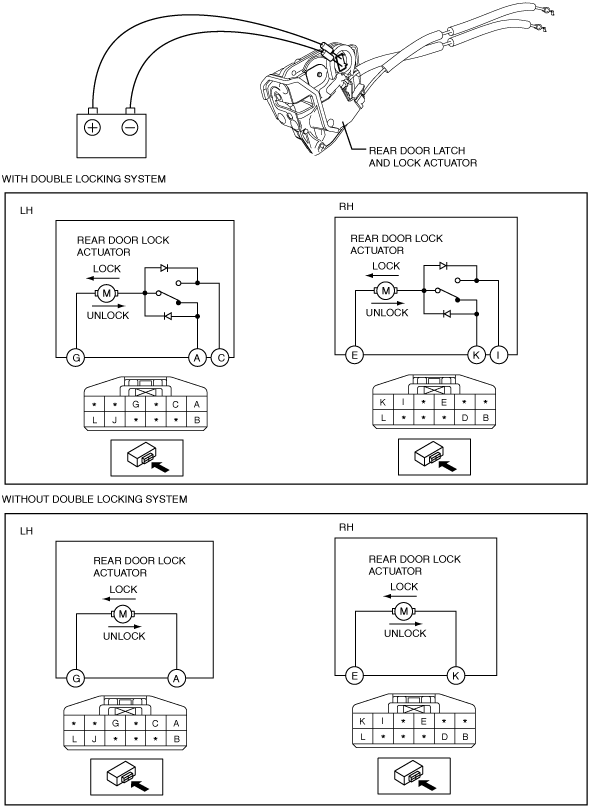

3. Apply battery positive voltage and connect the ground to the rear door lock actuator terminals as indicated in the table below and verify the operation condition.
-
• If not as indicated in the table, replace the rear door latch and lock actuator.
