REQUEST SWITCH INSPECTION

id091400515400

Driver's Door/Passenger's Door

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(3)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(4)  Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

(5)  Front door key cylinder (driver's side) (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)

(6)  Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)

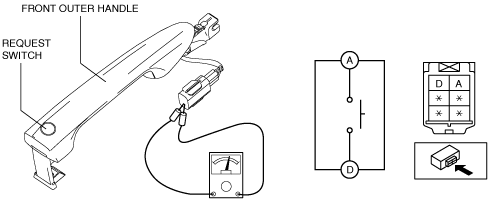

4.  Verify that the continuity is as indicated in the table.

ac5wzw00000945

ac5wzw00000265

•  If not as indicated in the table, replace the front outer handle.

Liftgate

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION.)

(6)  Request switch (liftgate)(See REQUEST SWITCH REMOVAL/INSTALLATION.)

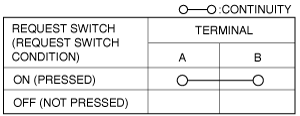

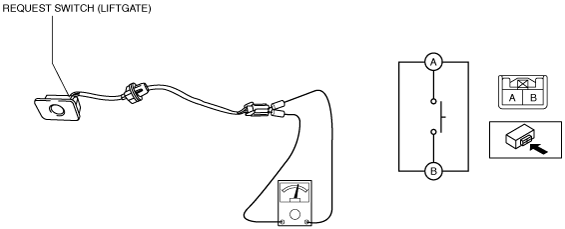

3.  Verify that the continuity is as indicated in the table.

ac5wzw00000946

ac5wzw00000266

•  If not as indicated in the table, replace the request switch.
