LIFTGATE OPENER SWITCH INSPECTION

id091400516200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION.)

(6)  Liftgate opener switch (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)

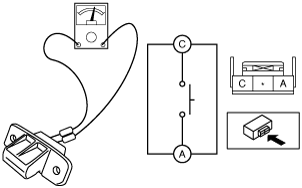

3.   Verify the continuity of liftgate opener switch terminals A and C.

am6zzw00008521

•  If not as indicated in the table, replace the liftgate opener switch.

am6zzw00008522
