TRUNK LID OPENER SWITCH INSPECTION

id091400516400

Vehicle Interior

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk lid opener switch (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)

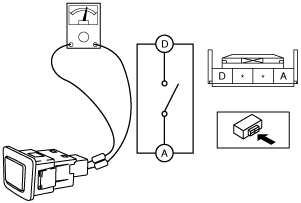

3.  Verify the continuity of trunk lid opener switch terminals A and D.

am6xuw00005400

•  If not as indicated in the table, replace the trunk lid opener switch.

am6xuw00005398

Vehicle Exterior

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk lid recess (See TRUNK LID RECESS REMOVAL/INSTALLATION.)

(2)  Trunk lid trim (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

(3)  Trunk lid garnish (See TRUNK LID GARNISH REMOVAL/INSTALLATION.)

(4)  Trunk lid opener switch (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION.)

3.  Verify the continuity of trunk lid opener switch terminals A and C.

am6zzw00008523

•  If not as indicated in the table, replace the trunk lid opener switch.

am6zzw00008524
