LIFTGATE GARNISH REMOVAL/INSTALLATION

id091600445800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2)  Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4)  Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

(5)  Rear finisher (See REAR FINISHER REMOVAL/INSTALLATION.)

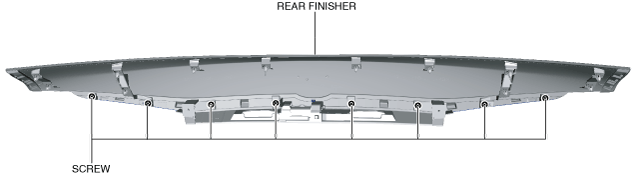

3.  Remove the screws.

am6zzw00015808

4.  Pull the liftgate garnish in the direction of the arrow shown in the figure and remove it from the rear finisher.

am6zzw00015809

5.  Install in the reverse order of removal.
