MUDGUARD REMOVAL/INSTALLATION

id091600467600

Front Mudguard

1.  Remove the screws.

am6xuw00011145

2.  Remove the fasteners.

3.  Partially peel back the front under cover No.1 in the direction of the arrow in the order of (1), (2) shown in the figure while detaching the guide.

am6zzw00015821

4.  Remove the screws.

am6zzw00015822

5.  Remove the fasteners.

am6zzw00015823

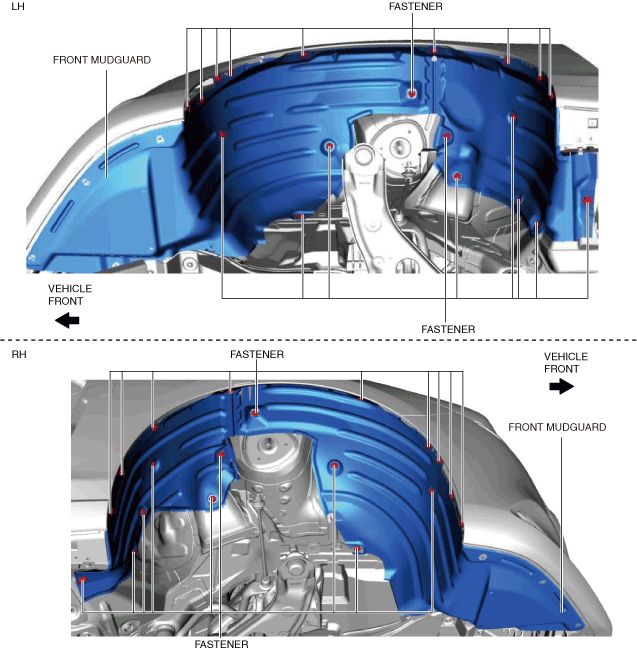

6.  Pull the front mudguard in the direction of the arrow shown in the figure.

am6xuw00011149

7.  Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION.)

8.  Install in the reverse order of removal.

Rear Mudguard

1.  Remove cap nuts.

LH

am6zzw00015824

RH

am6zzw00015825

2.  Remove the fastener.

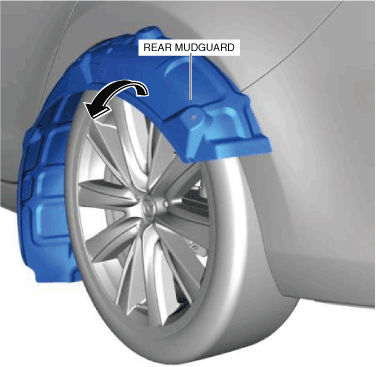

3.  Pull the rear mudguard in the direction of the arrow shown in the figure.

am6xuw00011152

4.  Install in the reverse order of removal.
