REAR SASH MOLDING REMOVAL

id091600805100

Warning

•  Using a utility knife with bare hands can cause injury. Always wear gloves when using a utility knife.

1.  Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

2.  Remove the rear door garnish. (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

3.  Remove the double-sided adhesive tape in the position shown in the figure using the utility knife.

am6zzw00017144

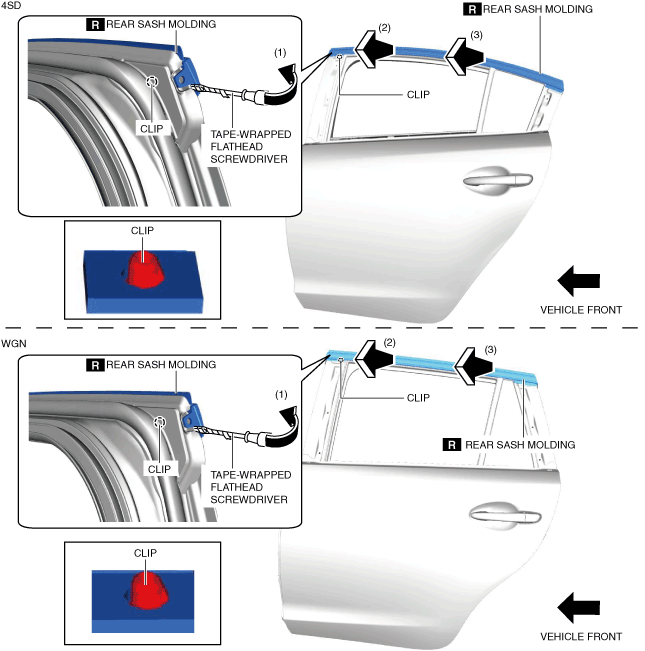

4.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of arrow (1) to detach the clip.

am6zzw00017145

5.  Remove the rear sash molding in the direction of the arrow in the order of (2), (3) shown in the figure.
