FOOT SUPPORT REMOVAL/INSTALLATION

id091700606100

With 360° View Monitor System

1.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

2.  Partially peel back the floor covering.

3.  Remove the fastener.

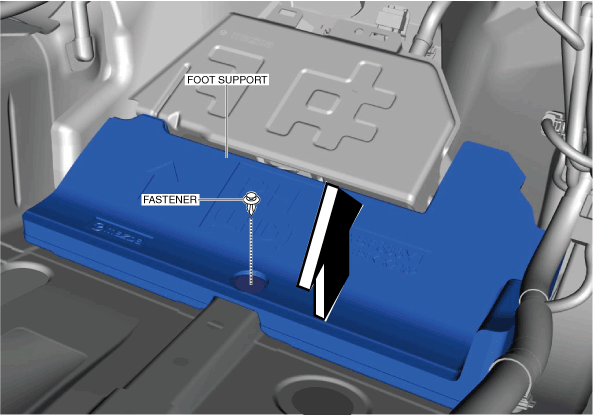

am6xuw00011747

4.  Pull the foot support in the direction of the arrow and remove it.

5.  Install in the reverse order of removal.

Without 360° View Monitor System

1.  Remove the following parts:

(1)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Passenger-side side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

2.  Partially peel back the floor covering.

3.  Remove the fastener.

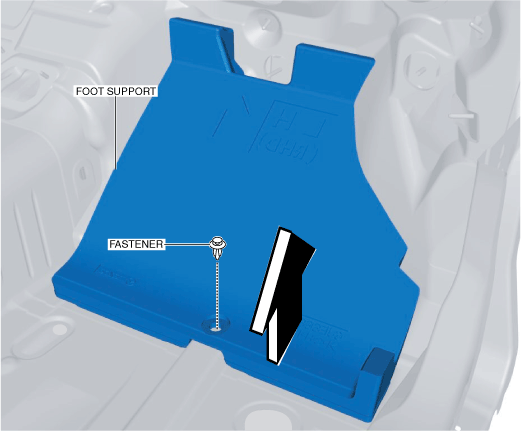

am6xuw00011748

4.  Pull the foot support in the direction of the arrow and remove it.

5.  Install in the reverse order of removal.
