REAR CONSOLE DISASSEMBLY/ASSEMBLY
id091700898600
1. Remove the upper panel component. (See UPPER PANEL REMOVAL/INSTALLATION.)
2. Remove the upper console up. (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION.)

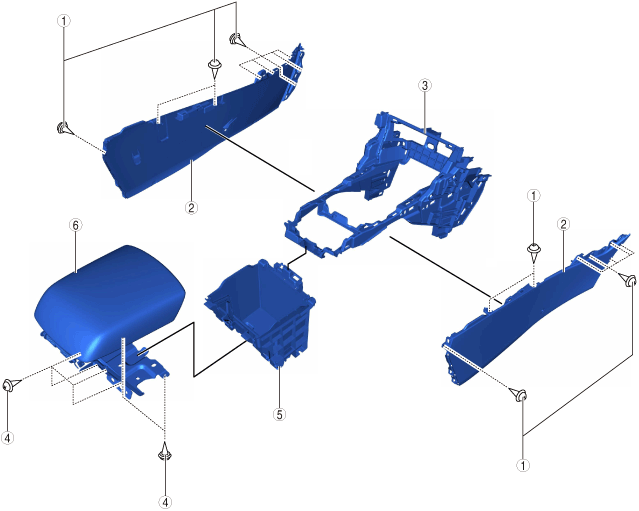

3. Disassemble in the order indicated in the table.
am6xuw00011014
|
|
1
|
Screw
|
|
2
|
Side panel
(See Side Panel Removal Note.)
|
|
3
|
Rear console bracket
|
|
4
|
Screw
|
|
5
|
Rear console box
|
|
6
|
Rear console lid component
|
4. Assemble in the reverse order of disassembly.
Side Panel Removal Note

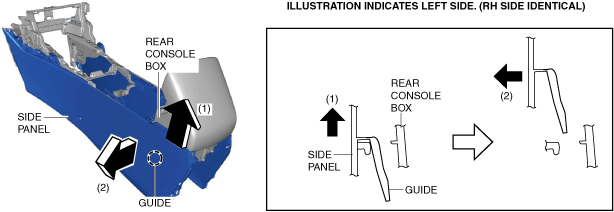

1. Move the side panel in the order of arrows (1) and (2) shown in the figure and remove the guide from the rear console box.
am6xuw00011015
|
