TRUNK SIDE POCKET REMOVAL/INSTALLATION

id091700998900

4SD

1.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

2.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

3.  Remove the fasteners. (LH side only)

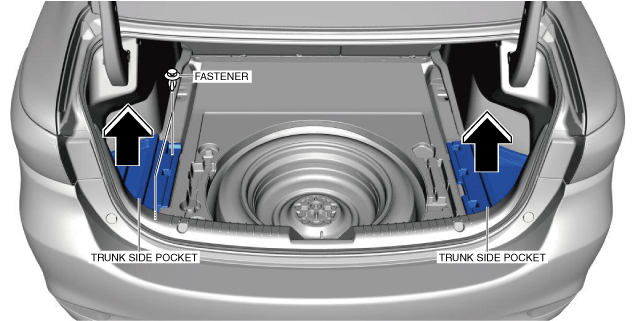

am6xuw00011016

4.  Remove the trunk side pocket in the direction of the arrows shown in the figure.

5.  Install in the reverse order of removal.

WGN

1.  Remove the trunk covering. (See TRUNK COVERING REMOVAL/INSTALLATION.)

2.  Remove the trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

3.  Remove the fasteners. (LH side only)

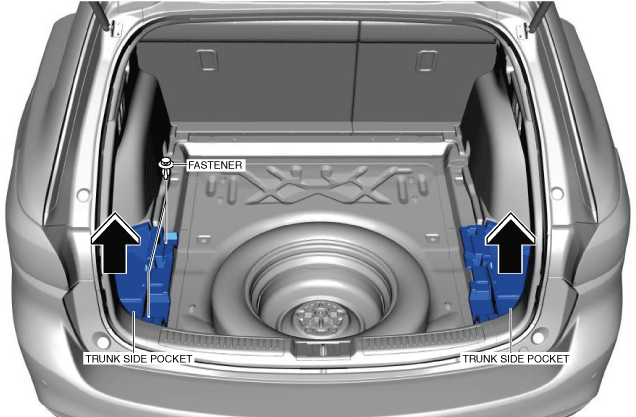

am6zzw00016836

4.  Remove the trunk side pocket in the direction of the arrows shown in the figure.

5.  Install in the reverse order of removal.
