LICENSE PLATE LIGHT REMOVAL/INSTALLATION

id091800801100

4SD

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Trunk lid recess (See TRUNK LID RECESS REMOVAL/INSTALLATION.)

(2) Trunk lid trim (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

(3) Trunk lid garnish cover (See TRUNK LID GARNISH REMOVAL/INSTALLATION.)

3. Disconnect the connector.

am6xuw00011284

4. While pressing the license plate light tabs in the direction of arrows (1) shown in the figure, press the license plate light in the direction of arrow (2) to detach the license plate light tabs from the trunk lid.

am6xuw00011285

Caution

• If the license plate light is removed from the trunk lid, the license plate light may fall off and be damaged. When removing the license plate light from the trunk lid, hold the license plate light on lens side with a hand during servicing.

5. Remove the license plate light.

am6xuw00011286

6. Install in the reverse order of removal.

WGN

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(2) Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

(3) Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION.)

(4) Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

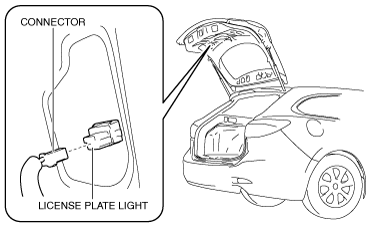

3. Disconnect the connector.

am6zzw00009225

am6zzw00008146

Caution

• If the license plate light is removed from the liftgate, the license plate light may fall off and be damaged. When removing the license plate light from the liftgate, hold the license plate light on lens side with a hand during servicing.

5. Remove the license plate light.

am6zzw00008281

6. Install in the reverse order of removal.
