REAR TURN LIGHT BULB REMOVAL/INSTALLATION

id091800813800

4SD

Note

•  The LED-type rear turn light is integrated with the rear combination light.

•  When replacing the LED-type rear turn light, replace the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

WGN

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

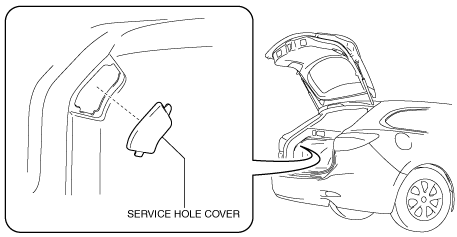

2.  Remove the service hole cover.

am6zzw00009261

3.  Rotate the socket in the direction of the arrow (1) shown in the figure and remove it from the rear combination light in the direction of the arrow (2) shown in the figure.

am6zzw00012819

4.  Remove the rear turn light bulb.

am6zzw00009260

5.  Install in the reverse order of removal.
