REAR COMBINATION LIGHT REMOVAL/INSTALLATION

id091800801000

Note

•  Fogging or condensation on the inside of the rear combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the rear combination lights rises after illuminating the rear turn light bulbs or a period of time has elapsed.

4SD

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

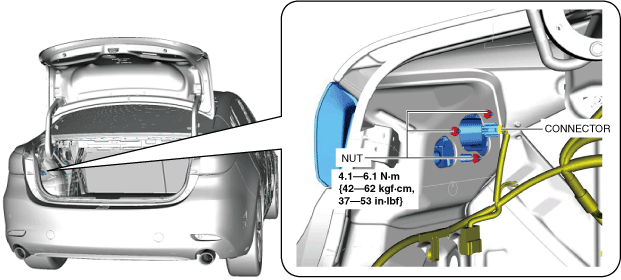

am6xuw00011272

5.  Remove the nuts.

6.  To prevent scratches or damage, affix protective tape to the position shown in the figure.

Caution

•  When the rear combination light is removed from the body, perform the procedure after affixing protective tape to the body. Otherwise, the body could interfere with the rear combination light and cause scratching or damage to the body.

am6xuw00011273

7.  Pull the rear combination light in the direction of the arrow shown in the figure and pull out pins, stud bolts and hook from the body. (See 4SD.)

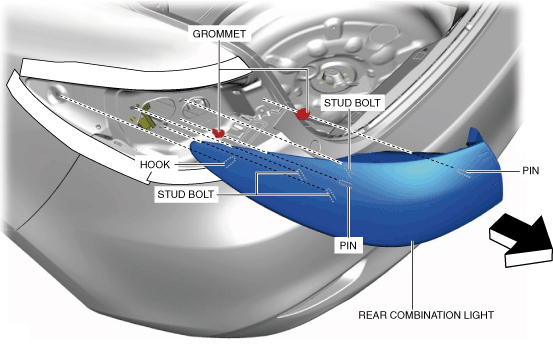

am6xuw00011274

8.  Remove the rear combination light.

9.  Install in the reverse order of removal.

WGN

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the service hole cover.

am6zzw00009290

3.  Disconnect the connectors.

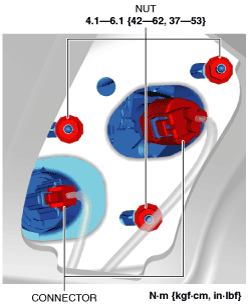

am6zzw00012764

4.  Remove the nuts.

5.  To prevent scratches or damage, affix protective tape to the position shown in the figure.

Caution

•  When the rear combination light is removed from the body, perform the procedure after affixing protective tape to the body. Otherwise, the body could interfere with the rear combination light and cause scratching or damage to the body.

am6zzw00009292

6.  Pull the rear combination light in the direction of the arrow shown in the figure and pull out pins, stud bolts and hook from the body. (See 4SD.)

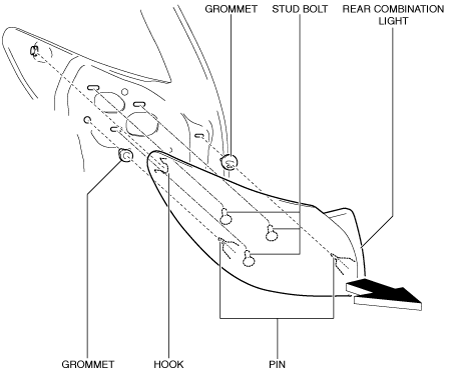

am6zzw00012765

7.  Remove the rear combination light.

8.  Install in the reverse order of removal.

Grommet Installation Note

1.  Install the grommet with the arrow pointed outward the vehicle.

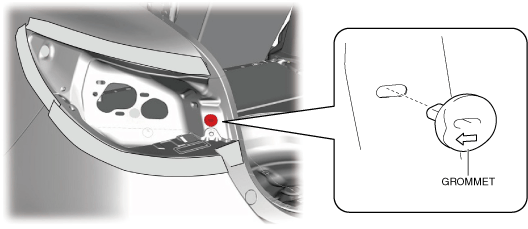

am6xuw00011275
