REAR WIPER AND WASHER SWITCH INSPECTION

id091900800400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the rear wiper and washer switch terminals is as indicated in the table.

•  If the continuity is not as indicated in the table, replace the wiper and washer switch. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

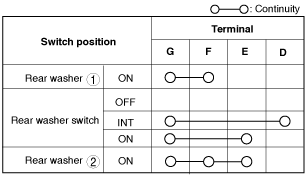

With Wiper And Washer Switch On Right Side

ac5wzw00002968

ac5wzw00004632

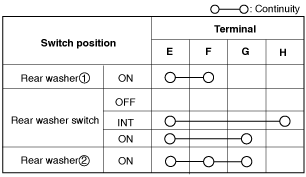

With Wiper And Washer Switch On Left Side

ac5wzw00001590

ac5wzw00001591
