SEAT BELT WARNING LIGHT

id092200022900

Purpose

Functions

Signal name	Sending module/part name	Communication method
Vehicle speed signal	PCM	HS-CAN
Driver's side/passenger's side buckle switch signal	SAS control module
Occupancy sensor signal
Rear buckle switch signal	Rear body control module (RBCM)	MS-CAN

Driver's side/passenger's side seat belt warning light display function

•  The driver's side/passenger's side seat belt warning light has a warning for when the vehicle is stopped, while the vehicle is being driven, and subsequent warnings while the vehicle is being driven.

Warning while vehicle is stopped

•  When all of the following conditions are met, the light turns on.

―  Ignition is switched ON (engine off or on)

―  Driver's side/passenger's side buckle switch on signal (seat belt unfastened) is detected

―  Occupancy sensor on signal (occupant in passenger seat) is detected (passenger's side seat belt warning light only)

Warning while vehicle is driven

•  When all of the following conditions are met, the light flashes/turns on.

―  Vehicle speed is 20 km/h {12 mph} or more

―  Driver's side/passenger's side buckle switch on signal (seat belt unfastened) is detected

―  Occupancy sensor on signal (occupant in passenger seat) is detected (passenger's side seat belt warning light only)

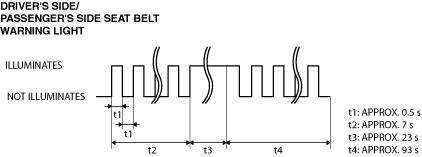

•  The warning while the vehicle is being driven flashes/turns on in the pattern shown in the figure.

am6xun00002914

Subsequent warning while vehicle is driven

•  When all of the following conditions are met, the light flashes/turns on.

―  Vehicle speed is 20 km/h {12 mph} or more

―  Occupancy sensor on signal (occupant in passenger seat) is detected (passenger's side seat belt warning light only)

―  After warning while vehicle is being driven operates, buckle switch off signal (seat belt fastened) to on signal (seat belt unfastened) is detected

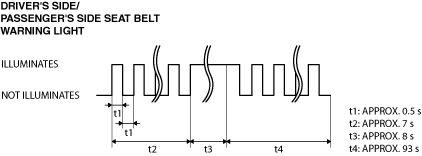

•  The subsequent warning while vehicle is driven flashes/turns on in the pattern shown in the figure.

am6xun00002915

Rear seat belt warning light (red) display function

•  The rear seat belt warning light (red) has an initial warning to urge rear seat belts to be fastened, a normal warning when a rear seat belt is unfastened, and a warning when a rear seat belt is unfastened while the vehicle is being driven.

Initial warning

•  When all of the following conditions are met, the light turns on.

―  Ignition switched from OFF to ON (engine off or on) is detected

―  Rear buckle switch on (seat belt unfastened) is detected

Normal warning

•  When all of the following conditions are met, the light turns on.

―  Rear door latch switch off (rear door closed) is detected

―  After rear buckle switch off signal (seat belt fastened) to rear buckle switch on signal (seat belt unfastened) is detected

Subsequent warning while vehicle is driven

•  After rear buckle switch off signal (seat belt fastened) to rear buckle switch on signal (seat belt unfastened) is detected, vehicle speed of approx. 20 km/h or more is detected

Rear seat belt indicator light (green) display function

•  The rear seat belt indicator light (green) has an initial indication to indicate the rear seat belt fastened status immediately after the ignition is switched ON and an indication indicating that a rear seat belt is fastened from unfastened while the vehicle is being driven.

Initial indication

•  When all of the following conditions are met, the light turns on.

―  Ignition switched from OFF to ON (engine off or on) is detected

―  Rear buckle switch off (seat belt fastened) is detected

Normal indication

•  When all of the following conditions are met, the light turns on.

―  Rear door latch switch off (rear door closed) is detected

―  After rear buckle switch on signal (seat belt unfastened) to rear buckle switch off signal (seat belt fastened) is detected

Structure/Construction

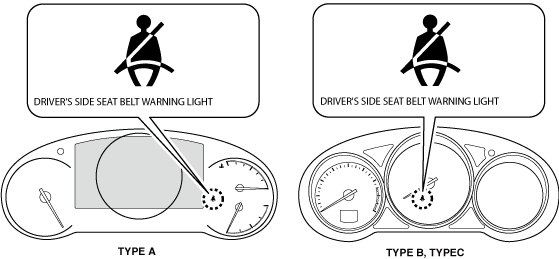

•  The driver's side seat belt warning light is built into the instrument cluster.

am6xun00004290

Operation

Driver's side seat belt warning light

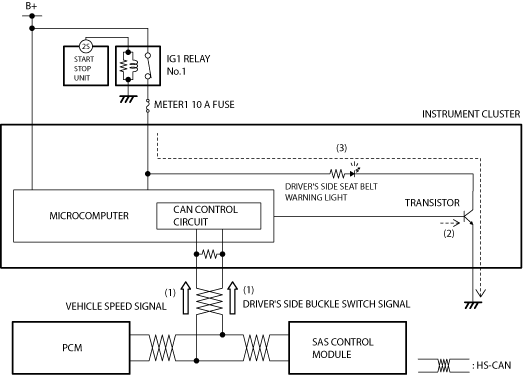

1.  When the instrument cluster receives (1) a vehicle speed signal from the PCM and a driver's buckle switch signal from the SAS control module via CAN communication while the ignition is switched ON (engine off or on), it turns the transistor on (2) intermittently for flashing and continuously for illumination.

2.  When the transistor turns on intermittently, the driver’s seat belt warning light flashes (3), when it turns on continuously, the driver’s seat belt warning light turns on (3).

am6xun00004291

Passenger's side seat belt warning light

•  For the passenger's side seat belt warning light operation, refer to [INDICATOR UNIT]. (See INDICATOR UNIT.)

Rear seat belt warning / indicator light

•  For the rear seat belt warning / indicator light operation, refer to [INDICATOR UNIT]. (See INDICATOR UNIT.)

Fail-safe
