PARKING ASSIST UNIT REMOVAL/INSTALLATION

id092200041800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

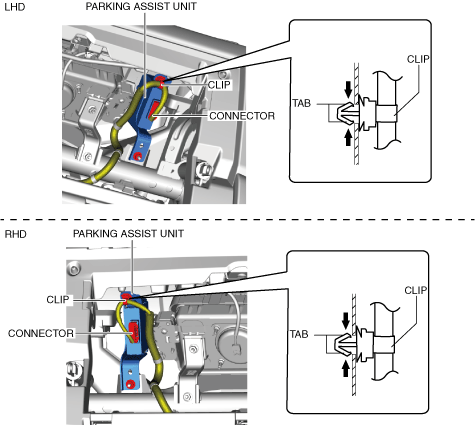

3.  Disconnect the connector.

am6zzw00017057

4.  Remove the clip.

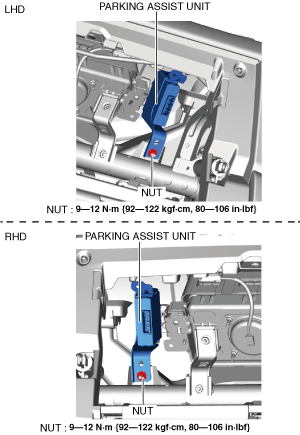

5.  Remove the nut.

ac5jjw00002433

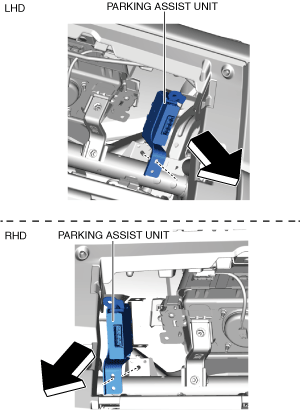

6.  Pull the parking assist unit in the direction of the arrow shown in the figure and remove it..

ac5jjw00003433

7.  Install in the reverse order of removal.
