ACTIVE DRIVING DISPLAY DISASSEMBLY/ASSEMBLY

id092200103800

Caution

•  If the active driving display is hit forcefully during disassembly such as by being dropped, it could get damaged and the system may not operate normally. When disassembling the active driving display, perform the procedure on a workbench and clean cloth being careful not to drop it.

1.  Remove the active driving display short-cord. (See ACTIVE DRIVING DISPLAY SHORT-CORD REMOVAL/INSTALLATION.)

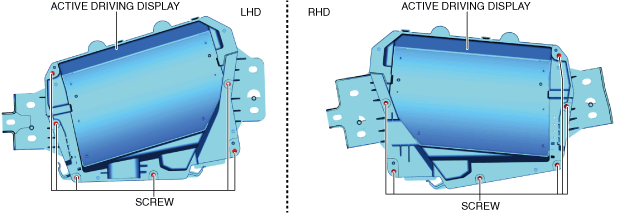

2.  Remove the screws.

am6zzw00015799

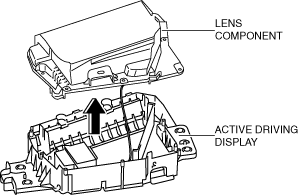

3.  Move the lens component in the direction of the arrow shown in the figure.

am6xuw00012762

4.  Remove the screw.

am6xuw00012763

5.  Pull out the photo sensor wiring harnesses from the hooks.

am6xuw00012764

6.  Remove the photo sensor.

7.  Assemble in the reverse order of disassembly.
