ACTIVE DRIVING DISPLAY SHORT-CORD REMOVAL/INSTALLATION

id092200104000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the battery. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the brake pipes from the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.].)(See MASTER CYLINDER REMOVAL/INSTALLATION [R.H.D.].)

4.  Disconnect the clutch reserve hose from the master cylinder.(MTX) (See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [C66M-R].)(See CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION [D66M-R, D66MX-R])

5.  Remove the following parts:

(1)  Side wall (driver side) (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Front heat duct (LH) (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

(3)  Brake pedal (See BRAKE PEDAL REMOVAL/INSTALLATION [L.H.D.].)(See BRAKE PEDAL REMOVAL/INSTALLATION [R.H.D.].)

(4)  Clutch pedal (MTX) (See CLUTCH PEDAL REMOVAL/INSTALLATION [C66M-R].)(See CLUTCH PEDAL REMOVAL/INSTALLATION [D66M-R, D66MX-R].)

(5)  Meter hood No.2 (See METER HOOD REMOVAL/INSTALLATION.)

(6)  Active driving display (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION.)

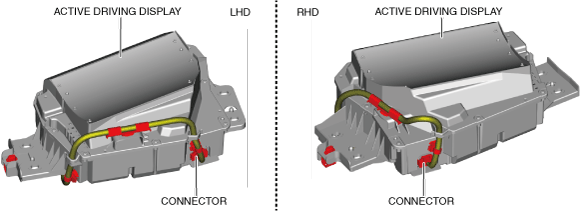

6.  Disconnect the connector.

am6zzw00015800

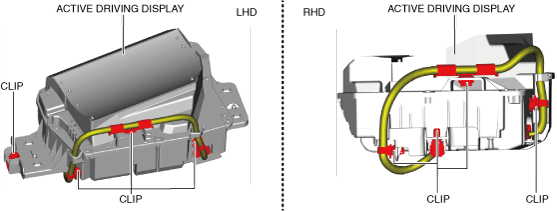

7.  Remove the clips.

am6zzw00015801

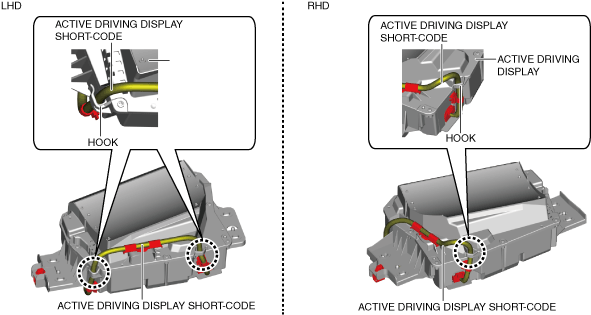

8.  Pull out the active driving display short-cord from the hooks.

am6zzw00015802

9.  Remove the active driving display short-cord.

10.  Install in the reverse order of removal.
