CENTER PILLAR REMOVAL [PANEL REPLACEMENT]

id098008743900

Symbol Mark

am6zzb00000392

Removal Procedure

Caution

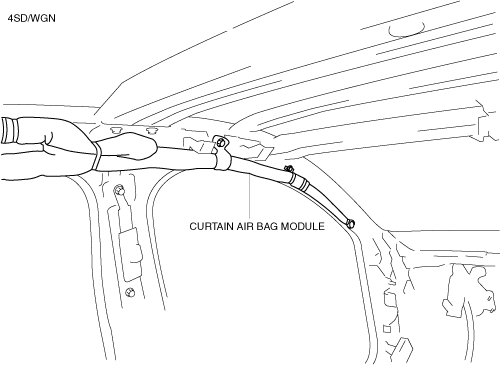

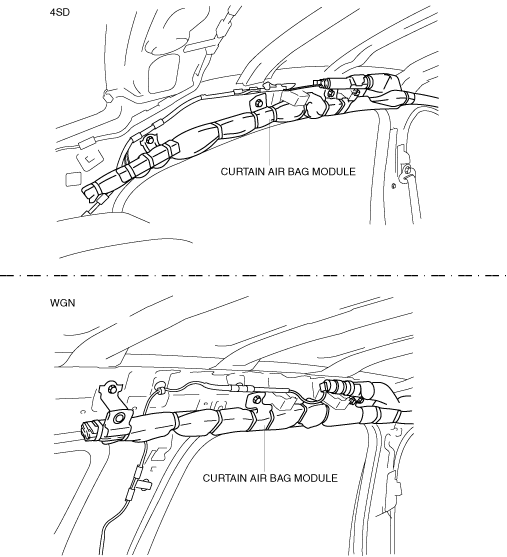

•  To prevent injury, remove the curtain air bag module before performing the work.

Front-side

am6zzb00000724

Rear-side

am6zzb00000725

Caution

•  If cutting work is done using flame, a fire could occur because insulators are inserted in the locations shown in the figure. When performing the cutting work near the insulator insert areas, avoid using flame and use an air saw or drill.

am6zzb00000900

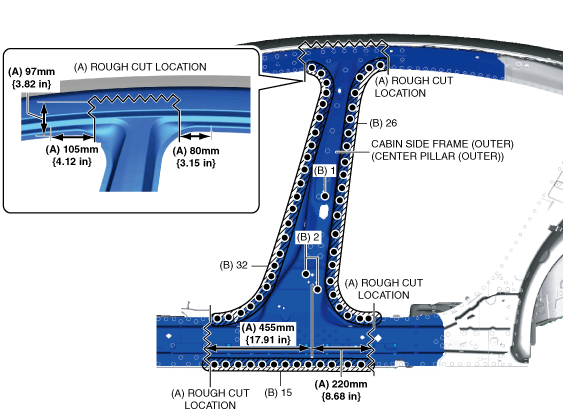

1.  Rough cut the 3 locations in area A shown in the figure.

2.  Drill the spot welds in the 76 locations in area B shown in the figure.

am6xub00000277

3.  Remove the cabin side frame (outer) (center pillar (outer)).

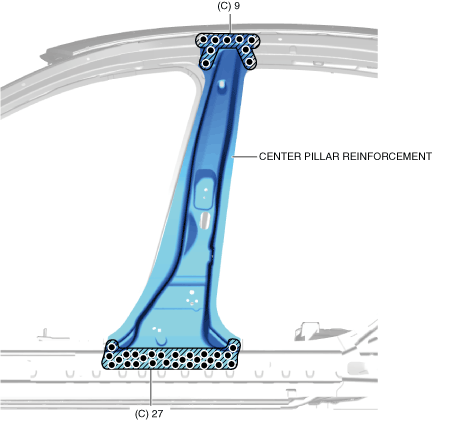

4.  Drill the spot welds in the 36 locations in area C shown in the figure.

Note

•  When drilling the spot welds in the 36 locations in area C shown in the figure, do not drill through-holes in consideration of the workability when installing.

am6xub00000278

5.  Remove the center pillar reinforcement.

6.  Remove the side sill reinforcement. (See SIDE SILL PANEL REMOVAL [PANEL REPLACEMENT]).

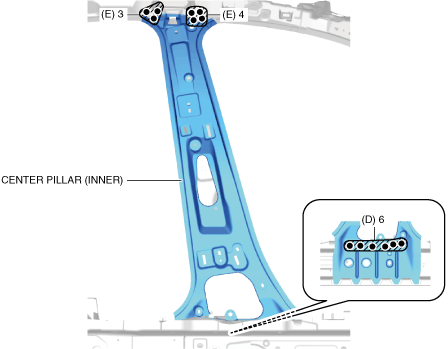

7.  Drill the spot welds in the 6 locations in area D shown in the figure.

8.  Drill the spot welds in the 7 locations in area E shown in the figure from the interior.

am6xub00000279

9.  Remove the center pillar (inner).
