FUEL PUMP SPEED CONTROL RELAY FUNCTION [L3 Turbo]

id0114b4730300

• Supplies power to the fuel pump according to control signals from the PCM.

• For fuel pump speed control, refer to CONTROL SYSTEM, FUEL PUMP SPEED CONTROL. (See FUEL PUMP CONTROL OUTLINE [L3 Turbo], FUEL PUMP CONTROL BLOCK DIAGRAM [L3 Turbo], FUEL PUMP CONTROL OPERATION [L3 Turbo].)

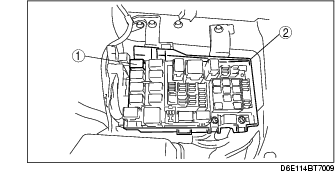

1	Fuel pump speed control relay
2	Main fuse block
