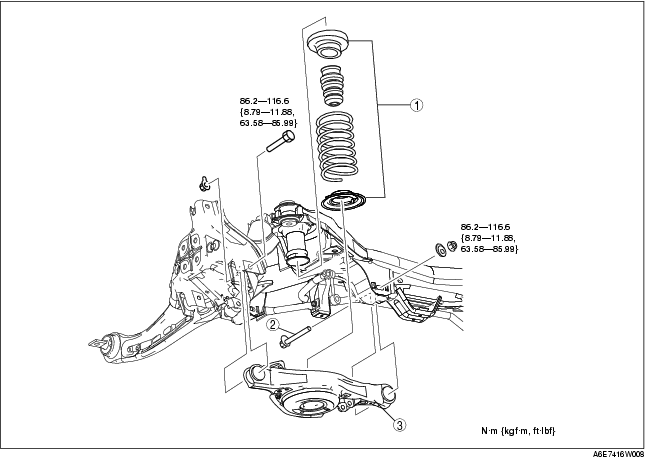

REAR LOWER ARM REMOVAL/INSTALLATION

id021400800900

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

3. Inspect the rear wheel alignment.

(See REAR WHEEL ALIGNMENT.)

1
Rear coil spring component
2
Bolt (rear lower arm inner side)
3
Rear lower arm
