REAR SHOCK ABSORBER REMOVAL/INSTALLATION [WGN]

id0214008013b1

Caution

• Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, remove the ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.

1. Remove in the order indicated in the table.


1	Rear shock absorber and bracket
2	Bracket (See Bracket Installation Note.)
3	Rear shock absorber

2. Install in the reverse order of removal.

Bracket Installation Note

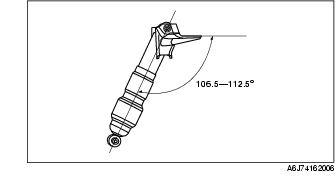

1. Install the bracket as shown in the figure.
