TRANSFER OIL INSPECTION [JA5AX-EL]

1. Park the vehicle on level ground.

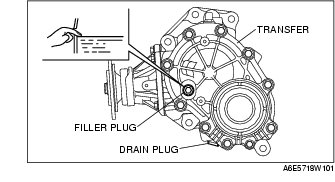

2. Remove the PTO heat shield.

3. Remove the filler plug.

4. Verify that the oil is near the brim of the plug port.

• If the oil level is low, add the specified amount and type of oil through the filler plug hole.

Specified oil grade: API Service GL-5

Specified oil viscosity: SAE 80W-90

5. Apply a sealant to the thread area of filler plug.

TB1215 or equivalent

6. Install the filler plug.

9.8-19.6 N·m

{100-199 kgf·cm, 116-175 in·lbf}

7. Install the PTO heat shield. (See PTO Heat Shield Installation Note.)
