KEYLESS ANTENNA REMOVAL/INSTALLATION

id0914z6440500

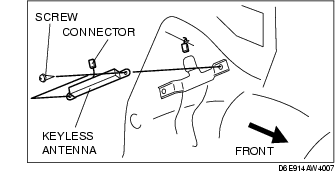

Driver-side/passenger-side Door

1. Disconnect the negative battery cable.

2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

3. Remove the screws.

4. Disconnect the connector, then remove the keyless antenna.

5. Install in the reverse order of removal.

Exterior, Rear

1. Disconnect the negative battery cable.

2. Remove the screws.

3. Disconnect the connector, then remove the keyless antenna.

4. Install in the reverse order of removal.

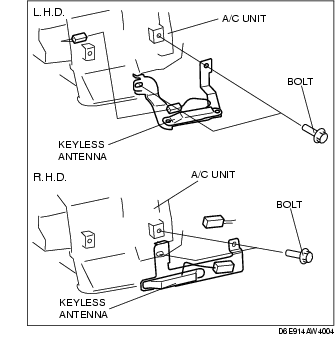

Interior, Front

1. Disconnect the negative battery cable.

2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)

3. Remove the bolts.

4. Disconnect the connector, then remove the keyless antenna.

5. Install in the reverse order of removal.

Interior, Middle

1. Disconnect the negative battery cable.

2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)

3. Remove the screws.

4. Disconnect the connector, then remove the keyless antenna.

5. Install in the reverse order of removal.

Interior, Rear [4SD]

1. Disconnect the negative battery cable.

2. Remove the screws.

3. Disconnect the connector, then remove the keyless antenna.

4. Install in the reverse order of removal.

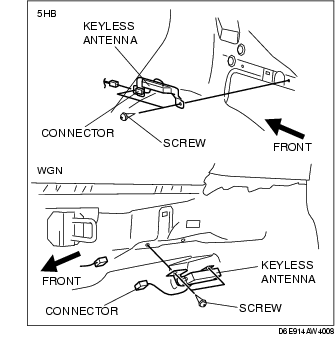

Interior, Rear [5HB, WGN]

LH (LR)

1. Disconnect the negative battery cable.

2. Remove the trunk side upper trim. (LH side) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION [5HB].) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION [WGN].)

3. Remove the trunk side trim. (LH side) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [4SD, 5HB].) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION [WGN].)

4. Remove the screws.

5. Disconnect the connector, then remove the keyless antenna.

6. Install in the reverse order of removal.

RH (RR)

1. Disconnect the negative battery cable.

2. Remove the trunk side upper trim. (LH side) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION [5HB].) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION [WGN].)

3. Remove the screws.

4. Disconnect the connector, then remove the keyless antenna.

5. Install in the reverse order of removal.
