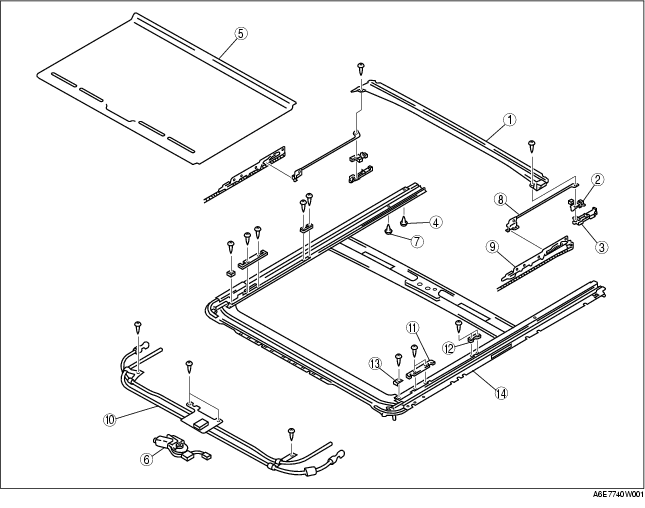

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
.
|
1
|
Drip rail
|
|
2
|
Position plate
|
|
3
|
Slider
(See Slider Disassembly Note)
|
|
4
|
Rear stopper A
|
|
5
|
Sunshade
|
|
6
|
Sunroof motor
|
|
7
|
Rear stopper B
|
|
8
|
Decoration link
|
|
9
|
Guide
(See Guide Disassembly Note)
|
|
10
|
Drive unit
(See Guide Assembly Note)
|
|
11
|
Set plate A
|
|
12
|
Set plate B
|
|
13
|
Front stopper
|
|
14
|
Frame
|

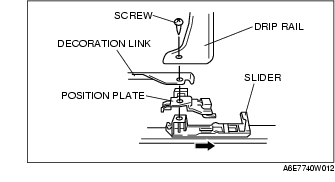

1. Remove the screw.
2. Slide the slider rearward, and remove it from the sunroof frame.
1. Slide the guide rearward, and remove it from the sunroof frame.

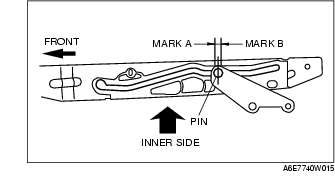

1. Set the pin in the decoration link.
1. Move the guide by hand until it comes to the front stopper.
2. Move the guide by hand until center of pin comes between mark A and B.
