DTC 35

id0102a0690400

DTC 35

Clutch switch (MTX), TR switch (ATX)

DETECTION CONDITION

• Voltage detected at cruise actuator connector terminal F is not approximately 0 V.

POSSIBLE CAUSE

• Cruise actuator malfunction
• Starter relay malfunction (ATX)
• Clutch switch malfunction (MTX)
• TR switch malfunction (ATX)
• Open circuit in wiring harness between PCM and clutch switch (MTX)
• Open circuit in wiring harness between starter relay and TR switch (ATX)
• Open circuit in wiring harness between cruise actuator and clutch switch (MTX) or TR switch (ATX)

Diagnostic procedure

STEP

INSPECTION

ACTION

1
• Does vehicle have MTX?
Yes
Go to next step.
No
Go to step 5.
2
INSPECT CLUTCH SWITCH
Is clutch switch okay?
Yes
Go to next step.
No
Replace clutch switch.
* 3
INSPECT WIRING HARNESS BETWEEN CLUTCH SWITCH AND GROUND FOR CONTINUITY

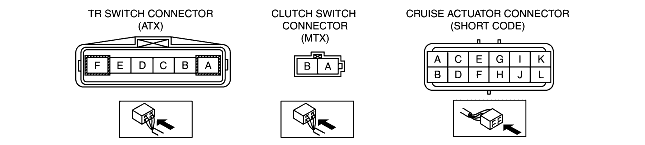

• Disconnect clutch switch connector.
• Is there continuity between clutch switch connector terminal B and ground?
Yes
Go to next step.
No
Repair wiring harness.
(Clutch switch-ground)
* 4
INSPECT WIRING HARNESS BETWEEN CRUISE ACTUATOR AND CLUTCH SWITCH FOR CONTINUITY
• Disconnect cruise actuator connector.
• Is there continuity between cruise actuator connector terminal F and clutch switch connector terminal A?
Yes
Replace cruise actuator.
No
Repair wiring harness.
(Cruise actuator-clutch switch)
5
INSPECT TR SWITCH
• Inspect TR switch.
• Is TR switch okay?
Yes
Go to next step.
No
Repair TR switch.
* 6
INSPECT WIRING HARNESS BETWEEN TR SWITCH AND GROUND FOR CONTINUITY
• Disconnect TR switch connector.
• Is there continuity between TR switch connector terminal A and ground?
Yes
Go to next step.
No
Repair wiring harness (TR switch-ground) or inspect starter.
* 7
INSPECT WIRING HARNESS BETWEEN CRUISE ACTUATOR AND TR SWITCH FOR CONTINUITY
• Disconnect cruise actuator connector.
• Is there continuity between cruise actuator connector terminal F and TR switch connector terminal F?
Yes
Replace cruise actuator.
No
Repair wiring harness. (cruise actuator-TR switch)
