1. Disconnect the negative battery cable.

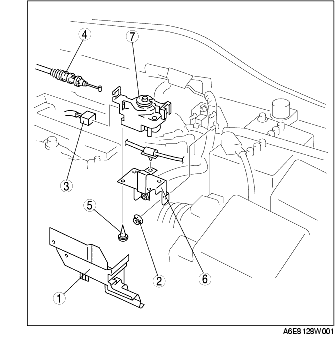

2. Remove in the order indicated in the table.
|
1
|
Cover
(See Cover Removal Note)
|
|
2
|
Nut
|
|
3
|
Connector
|
|
4
|
Actuator cable
(See ACTUATOR CABLE REMOVAL)
|
|
5
|
Screw
|
|
6
|
Bracket
|
|
7
|
Cruise actuator
|
3. Install in the reverse order of removal.

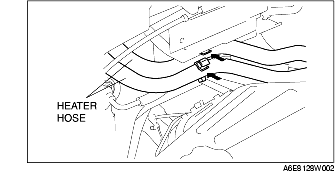

1. Unclamp the clips of the heater hoses at the front of the cover.
