1. Disconnect the negative battery cable.
2. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS [LF, L3].) (See ENGINE COOLANT REPLACEMENT [LF, L3].)
3. Loosen the water pump pulley bolt to remove the drive belt. (See DRIVE BELT REPLACEMENT [LF, L3].)

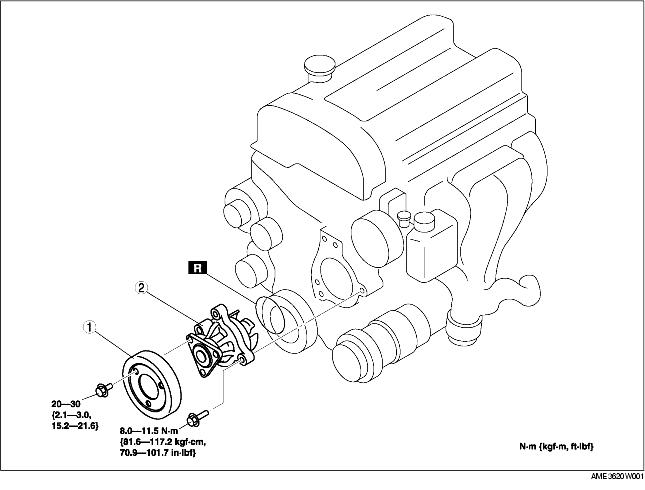

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [LF, L3].)
7. Inspect the engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [LF, L3].)
