THERMOSTAT REMOVAL/INSTALLATION [LF, L3]

1. Disconnect the negative battery cable.

2. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS [LF, L3].)

3. Remove the drive belt. (See DRIVE BELT REPLACEMENT [LF, L3].)

4. Remove the washer tank.

5. Remove the P/S oil pump.

Note

• Remove the P/S oil pump with hoses and pipe still connected.

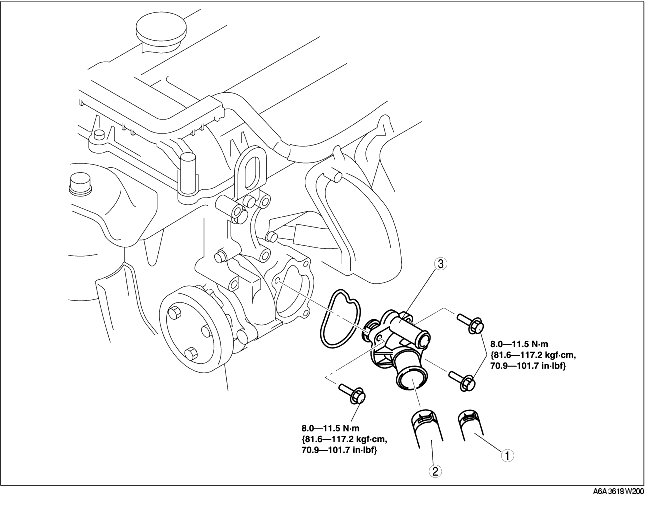

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

8. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [LF, L3].)

9. Inspect the engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [LF, L3].)
