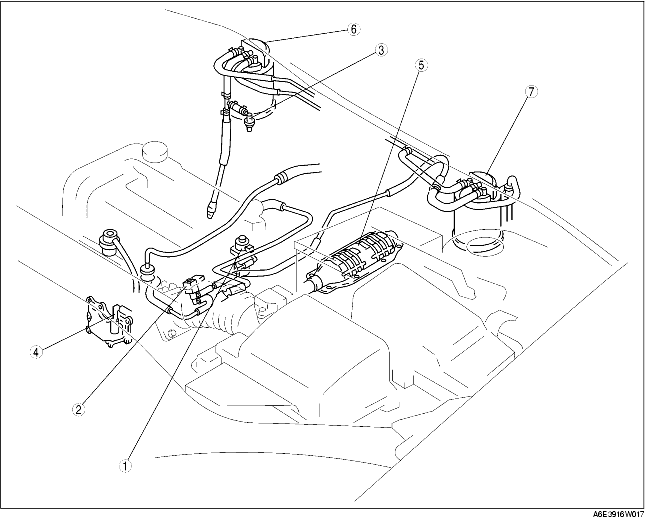

EMISSION SYSTEM LOCATION INDEX [LF, L3]
id0116008037a5
Engine room side
1
EGR valve (for unleaded fuel model)
(See
EGR VALVE REMOVAL/INSTALLATION [LF, L3]
)
(See
EGR VALVE INSPECTION [LF, L3]
)
2
Purge solenoid valve
(See
PURGE SOLENOID VALVE REMOVAL/INSTALLATION [LF, L3]
)
(See
PURGE SOLENOID VALVE INSPECTION [LF, L3]
)
3
Evaporative gas check valve (one-way) (L.H.D.)
(See
EVAPORATIVE GAS CHECK VALVE (ONE-WAY) INSPECTION [L.H.D.] [LF, L3]
)
4
PCV valve
(See
PCV VALVE INSPECTION [LF, L3]
)
5
TWC (for unleaded fuel model)
6
Charcoal canister (L.H.D.)
(See
CHARCOAL CANISTER INSPECTION [LF, L3]
)
7
Charcoal canister (R.H.D.)
(See
CHARCOAL CANISTER INSPECTION [LF, L3]
)
