ACTUATOR CABLE INSTALLATION

id012000105600

1.  Slide the lock lever in the direction shown by the arrow to unlock the adjuster.

a6e8128w009

2.  Turn the ratchet ring to release lock in the direction shown by the arrow.

a6e8128w010

3.  Install the actuator cable to the cruise actuator.

a6e8128w005

Caution

•  Due to the possibility of actuator cable damage, make sure there is no twisting in the cable when installing.

4.  Install the cruise actuator. (See CRUISE ACTUATOR REMOVAL/INSTALLATION.)

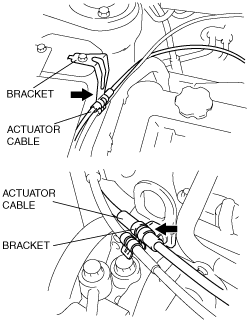

5.  Pass the actuator cable under the accelerator cable.

a6e8128w004

6.  Install the actuator cable to the bracket.

7.  Install the grommet to the cable bracket.

a6e8128w011

8.  Move the throttle, and install the end fitting of the actuator cable to the throttle.

Caution

•  Due to the possibility of actuator cable damage, make sure there is no twisting in the cable when installing.

9.  To adjust the free play, push or pull the actuator cable directly behind the spring two times.

a6e8128w014

10.  Turn the ratchet ring in the direction shown by the arrow to lock it.

a6e8128w015

11.  Slide the lock lever in the direction shown by the arrow to lock the adjuster.

a6e8128w016

12.  Install the cover to the cruise actuator.

13.  Install the plug hole plate. (L3) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L3].)
