CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [LF, L3]

Note

• Perform the following inspection only when directed.

Resistance Inspection

1. Disconnect the CKP sensor connector.

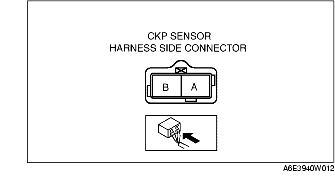

2. Measure the resistance between CKP sensor terminals A and B using an ohmmeter.

• If not as specified, replace the CKP sensor.

• If CKP sensor resistance is okay, but RPM PID value is out of specification, perform the "Circuit Open/Short Inspection".

Specification

400-550 ohms

Circuit Open/Short Inspection

1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [LF, L3].)

2. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)

Open circuit

• If there is no continuity, the circuit is open. Repair or replace the harness.

- CKP sensor terminal A (harness-side) and PCM terminal 2D (harness-side)

- CKP sensor terminal B (harness-side) and PCM terminal 2G (harness-side)

Short circuit

• If there is continuity, the circuit is shorted. Repair or replace the harness.

- CKP sensor terminal A (harness-side) and power supply

- CKP sensor terminal A (harness-side) and body GND

- CKP sensor terminal B (harness-side) and power supply

- CKP sensor terminal B (harness-side) and body GND
