REAR STABILIZER REMOVAL/INSTALLATION


id021400800500

1. Remove the rear auto leveling sensor (Australian specs. only). (See REAR AUTO LEVELING SENSOR REMOVAL/INSTALLATION.)

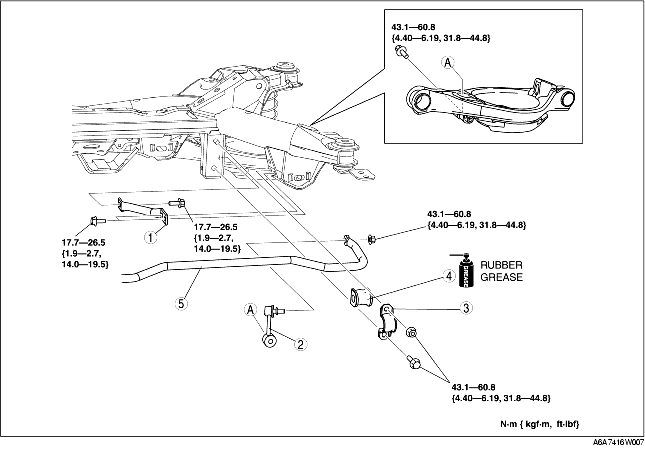

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. Adjust the headlight zeroset (Australian specs. only). (See HEADLIGHT ZEROSET.)

1
Side pipe member
2
Stabilizer control link
3
Stabilizer bracket
4
Bushing
5
Rear stabilizer
