JOINT SHAFT DISASSEMBLY/ASSEMBLY

id031300801400

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

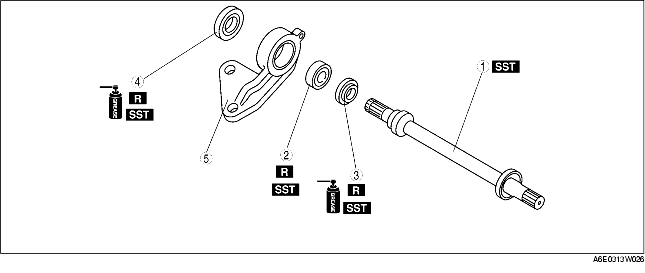

1	Joint shaft (See Joint Shaft Disassembly Note) (See Joint Shaft Assembly Note)
2	Bearing (See Bearing Disassembly Note) (See Bearing Assembly Note)
3	Dust seal (Left) (See Dust Seal (Left) Assembly Note)
4	Dust seal (Right) (See Dust Seal (Right) Assembly Note)
5	Bracket

Joint Shaft Disassembly Note

1. Disassemble the joint shaft using the SST.

Bearing Disassembly Note

If the bearing remains on the bracket

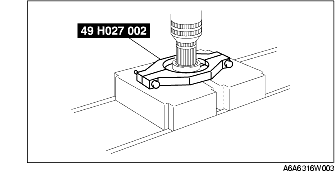

1. Remove the bearing using the SSTs.

If the bearing remains on the joint shaft

1. While holding the joint shaft, press out the bearing using the SST.

Dust Seal (Right) Assembly Note

1. Apply grease to the new dust seal lip.

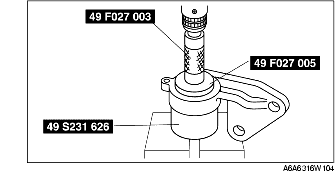

2. Install the new right side dust seal using the SSTs.

Bearing Assembly Note

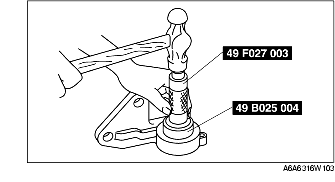

1. Install the new bearing using the SSTs.

Dust Seal (Left) Assembly Note

1. Apply grease to the new dust seal lip.

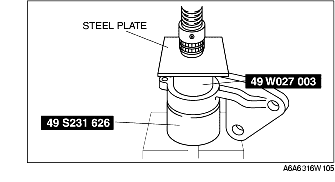

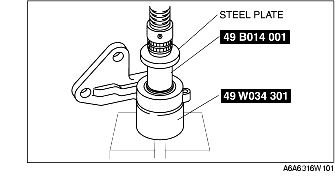

2. Install the new left side dust seal using a steel plate and the SSTs.

Joint Shaft Assembly Note

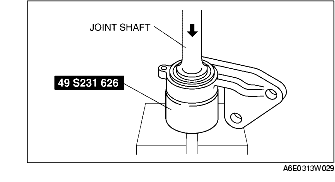

1. Assemble the joint shaft using a press and the SST.
