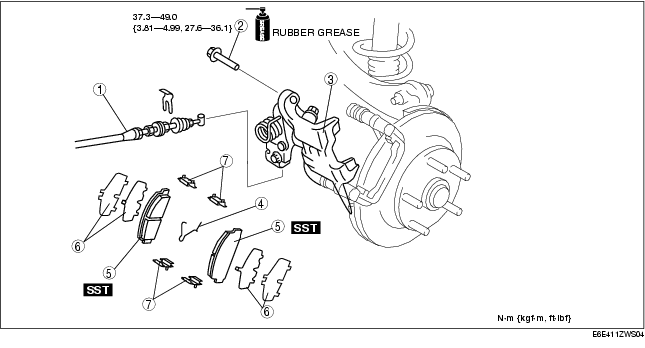

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
.
|
1
|
Parking brake cable, clip
|
|
2
|
Bolt
|
|
3
|
Caliper
|
|
4
|
Spring
|
|
5
|
Disc pad
(See Disc Pad Installation Note.)
|
|
6
|
Shim
|
|
7
|
Guide plate
|

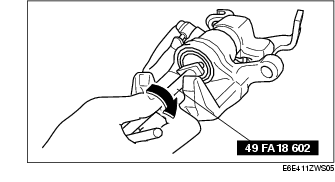

1. Push the piston fully inward using the SST.
2. Install the disc pad.
