DISC PAD (FRONT) REPLACEMENT

id041100800700

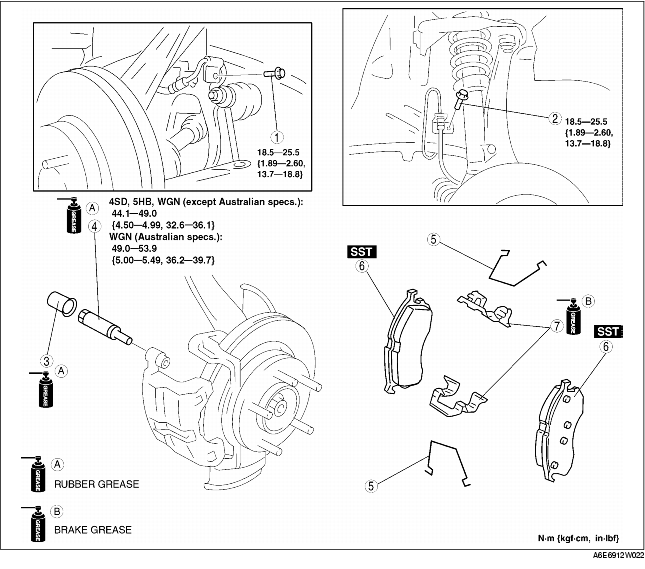

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.

.

1
Bolt
2
Bolt
3
Cap
4
Guide pin
5
M-spring
6
Disc pad
7
Guide plate

Disc Pad Installation Note

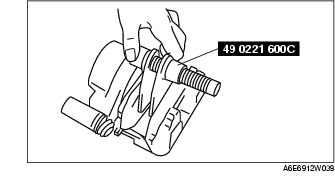

1. Push the piston fully inward using the SST.

2. Install the disc pad.
