DUAL PROPORTIONING VALVE REPLACEMENT (WITHOUT ABS)

id041100901800

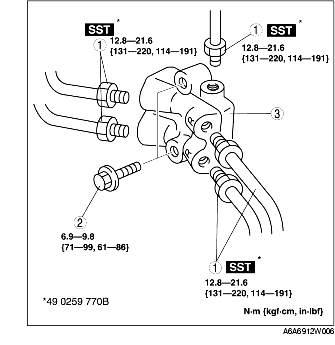

1. Remove in the order indicated in the table.


1	Brake pipe
2	Bolt
3	Dual proportioning valve (See Dual Proportioning Valve Installation Note)

2. Install in the reverse order of removal.

Dual Proportioning Valve Installation Note

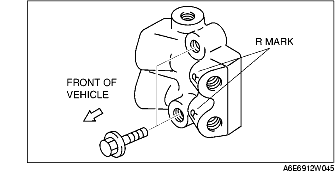

1. Install the dual proportioning valve so that the R mark faces the left side of the vehicle.
