FOREWORD (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL]

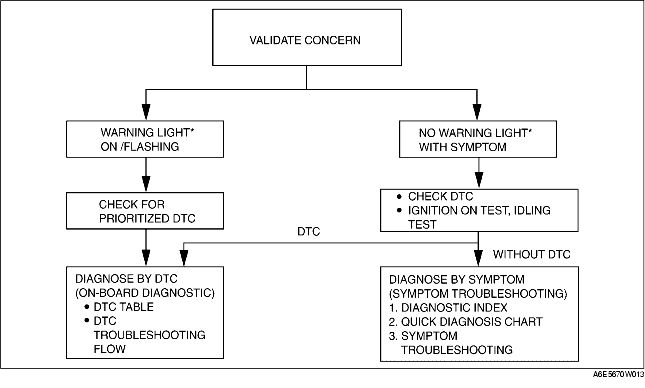

• When the customer reports a vehicle malfunction, check the malfunction indicator lamp (MIL), HOLD indicator light*¹, AT warning light*² illuminating, and PCM memory for diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.

- If the DTC exists, diagnose the applicable DTC. (See DTC TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)

- If the DTC does not exist, MIL does not illuminate, HOLD indicator light*¹ flashes, and AT warning light*² flashes, diagnose the applicable symptom troubleshooting. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)

(*¹: 4AT, *²: SPORT AT)

*:Malfunction indicator lamp (MIL), HOLD indicator light (4AT), AT warning light (SPORT AT)
