STEP
|
INSPECTION
|
ACTION
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME PID DATA been recorded?
|
Yes
|
Go to next step.
|
No
|
Record FREEZE FRAME PID DATA on repair order, then go to next step.
|
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Check for related Service Bulletins availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to available repair information.
• If vehicle is not repaired, go to next step.
|
No
|
Go to next step.
|
3
|

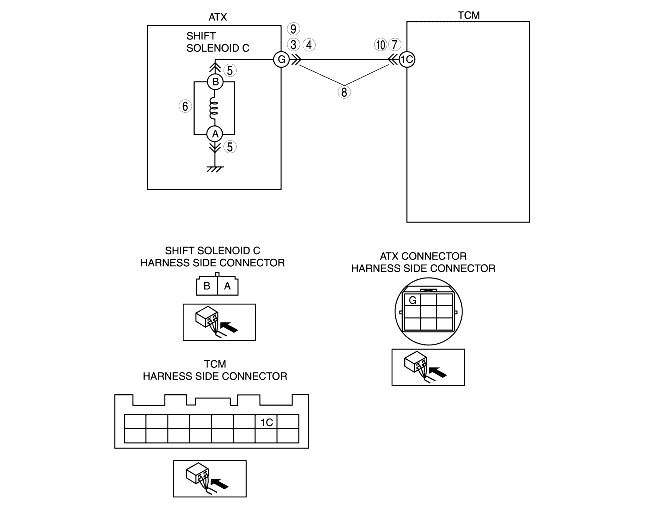

INSPECT ATX CONNECTOR FOR POOR CONNECTION
• Turn ignition key to OFF.
• Disconnect ATX connector.
• Check for poor connection (damaged/pulled-out terminals, corrosion, etc.).
• Is connection okay?
|
Yes
|
Go to next step.
|
No
|
Repair or replace connector and/or terminals, then go to Step 11.
|
4
|
INSPECT RESISTANCE
• Inspect resistance between ATX connector terminal G (transaxle case side) and body ground.
• Is resistance within 1.0-4.2 ohms?
|
Yes
|
Go to Step 7.
|
No
|
Go to next step.
|
5
|
INSPECT SHIFT SOLENOID C CONNECTOR FOR POOR CONNECTION
• Disconnect shift solenoid C connector.
• Check for poor connection (damaged/pulled-out terminals, corrosion, etc.).
• Is connection okay?
|
Yes
|
Go to next step.
|
No
|
Repair or replace connector and/or terminal, then go to Step 11.
|
6
|
INSPECT RESISTANCE
• Inspect resistance between shift solenoid C terminals A and B (part-side).
• Is resistance within 1.0-4.2 ohms?
|
Yes
|
Replace solenoid harness, then go to Step 11.
|
No
|
Verify shift solenoid C installation.
• If solenoid installed correctly, replace solenoid, then go to Step 11.
|
7
|
INSPECT TCM CONNECTOR FOR POOR CONNECTION
• Disconnect TCM connector.
• Check for poor connection (damaged/pulled-out terminals, corrosion, etc.).
• Is connection okay?
|
Yes
|
Go to next step.
|
No
|
Repair or replace connector and/or terminals, then go to Step 11.
|
8
|
INSPECT ATX CONNECTOR CIRCUIT FOR OPEN
• Inspect for continuity between TCM terminal 1C (harness-side) and ATX connector terminal G (vehicle harness-side).
• Is there continuity between terminals?
|
Yes
|
Go to next step.
|
No
|
Repair or replace harness, then go to Step 11.
|
9
|
INSPECT ATX CONNECTOR CIRCUIT FOR SHORT TO POWER
• Turn ignition key to ON (engine off).
• Check voltage at ATX connector terminal G (vehicle harness-side).
• Is voltage 0 V?
|
Yes
|
Go to next step.
|
No
|
Repair or replace harness, then go to Step 11.
|
10
|
INSPECT TCM CIRCUIT FOR SHORT TO GROUND
• Turn ignition key to OFF.
• Inspect for continuity between TCM terminal 1C (harness-side) and body ground.
• Is there continuity?
|
Yes
|
Repair or replace harness, then go to Step 11.
|
No
|
Go to next step.
|
11
|
VERIFY TROUBLESHOOTING OF DTC P0763 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear DTC from memory using WDS or equivalent.
• Drive vehicle in D range and make sure that gears shift smoothly from 1GR to 4GR.
• Are any DTCs present?
|
Yes
|
Replace TCM, then go to next step.
|
No
|
No concern is detected. Go to next step.
|
12
|
VERIFY AFTER REPAIR PROCEDURE
• Perform "After Repair Procedure".
• Are any DTCs present?
|
Yes
|
Go to applicable DTC inspection.
|
No
|
Troubleshooting completed.
|
