ROAD TEST [FN4A-EL]
id0517a1802200
-
Warning
-
• When performing a road test, be aware of other vehicles, people, impediments, etc. to avoid an accident.
-
Note
-
• When the legal speed limit must be exceeded, use a chassis dynamometer instead of performing a road test.
Road Test Preparation
1. Inspect the engine coolant levels. (See ENGINE COOLANT LEVEL INSPECTION [LF, L3].)
2. Inspect the engine oil levels. (See ENGINE OIL LEVEL INSPECTION [LF, L3].)
3. Inspect the ATF levels. (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION [FN4A-EL].)
4. Inspect the idle speed and ignition timing in P position. (See IDLE SPEED INSPECTION [LF, L3].) (See IGNITION TIMING INSPECTION [LF, L3].)
5. Bring up the engine and transaxle to normal operating temperature.
Shift Diagram
D range (normal mode)

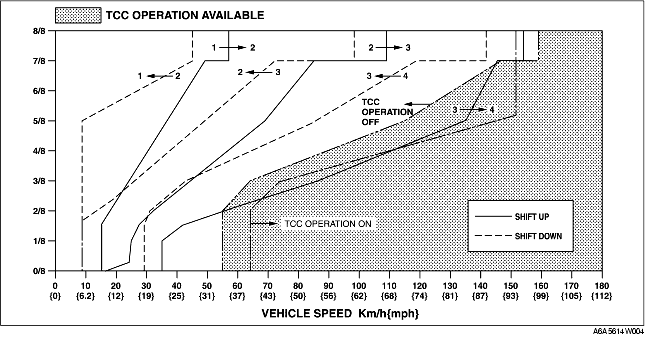

LF engine

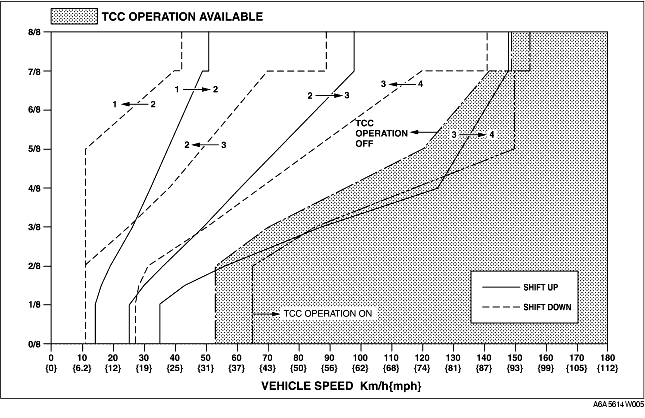

L3 engine
D Range Test
1. Perform road test preparation. (See Road Test Preparation.)
2. Shift the selector lever to D range.
3. Accelerate the vehicle with half and WOT, then verify that 1→2, 2→3, and 3→4 upshifts can be obtained. The shift points must be as shown in the table below.
-
• If not as specified, inspect the PCM or TCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].) (See SYMPTOM TROUBLESHOOTING ITEM TABLE (GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
4. Drive the vehicle in 4GR, 3GR, and 2GR and verify that kickdown occurs for 4→3, 3→2, 2→1 downshifts, and that the shift points are as shown in the table below.
-
• If not as specified, inspect the PCM or TCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].) (See SYMPTOM TROUBLESHOOTING ITEM TABLE (GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
5. Decelerate the vehicle and verify that engine braking effect is felt in 2GR, 3GR, and 4GR.
-
• If not as specified, inspect the PCM or TCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].) (See SYMPTOM TROUBLESHOOTING ITEM TABLE (GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
6. Drive the vehicle and verify that TCC operation is obtained. The operation points must be as shown in the table below.
-
• If not as specified, inspect the PCM or TCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].) (See SYMPTOM TROUBLESHOOTING ITEM TABLE (GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
7. Select HOLD mode. (4AT)
8. Accelerate the vehicle at half throttle and WOT, and verify that 4→3, 3→2, and 2→3 shift can be obtained. The shift points must be as shown in the table below.
-
• If not as specified, inspect the PCM or TCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].) (See SYMPTOM TROUBLESHOOTING ITEM TABLE (GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
9. Drive the vehicle in 4GR, 3GR, 2GR and verify that kickdown does not occur.
-
• If not as specified, inspect the PCM or TCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].) (See SYMPTOM TROUBLESHOOTING ITEM TABLE (GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
10. Decelerate the vehicle and verify that engine braking effect is felt in 2GR, 3GR, and 4GR.
-
• If not as specified, inspect the PCM or TCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].) (See SYMPTOM TROUBLESHOOTING ITEM TABLE (GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
Shift point table (LF engine)
|
Range/Mode
|
Throttle condition
|
Shift
|
Vehicle speed
(km/h {mph})
|
Turbine speed
(rpm)
|
|
D
|
NORMAL
|
WOT
|
D1→D2
|
50-56 {31-34}
|
5,450-6,050
|
|
D2→D3
|
96-104 {60-64}
|
5,550-5,950
|
|
D3→D4
|
145-155 {90-96}
|
5,600-5,950
|
|
TCC ON(D4)
|
152-162 {95-100}
|
4,250-4,500
|
|
Half throttle
|
D1→D2
|
27-36 {17-22}
|
3,950-3,900
|
|
D2→D3
|
53-70 {33-43}
|
3,050-4,000
|
|
D3→D4
|
95-124 {59-76}
|
3,650-4,750
|
|
TCC ON(D4)
|
102-135 {64-83}
|
2,850-3,750
|
|
CTP
|
D4→D3
|
24-30 {15-18}
|
700-800
|
|
D3→D1
|
8-14 {5-8}
|
350-500
|
|
Kickdown (WOT)
|
D4→D3
|
136-146 {85-90}
|
3,800-4,050
|
|
D3→D2
|
85-93 {53-57}
|
3,300-3,550
|
|
D2→D1
|
39-45 {25-27}
|
2,250-2,550
|
|
POWER
|
WOT
|
D1→D2
|
50-56 {31-34}
|
5,450-6,050
|
|
D2→D3
|
96-104 {60-64}
|
5,550-5,950
|
|
D3→D4
|
145-155 {90-96}
|
5,600-5,950
|
|
Half throttle
|
D1→D2
|
32-40 {20-24}
|
3,400-4,400
|
|
D2→D3
|
65-84 {41-52}
|
3,750-4,800
|
|
D3→D4
|
111-139 {69-86}
|
4,250-5,350
|
|
CTP
|
D4→D3
|
32-38 {20-23}
|
900-1,050
|
|
D3→D1
|
8-14 {5-8}
|
350-500
|
|
Kickdown (WOT)
|
D4→D3
|
136-146 {85-90}
|
3,800-4,050
|
|
D3→D2
|
85-93 {53-57}
|
3,300-3,550
|
|
D2→D1
|
39-45 {25-27}
|
2,250-2,550
|
|
HOLD
|
ALL round
|
D2→D3
|
15-25 {10-15}
|
900-1,400
|
|
D4→D3
|
145-151 {90-93}
|
4,050-4,200
|
|
D3→D2
|
7-13 {5-8}
|
300-450
|
Shift point table (L3 engine)
|
Range/Mode
|
Throttle condition
|
Shift
|
Vehicle speed
(km/h {mph})
|
Turbine speed
(rpm)
|
|
D
|
NORMAL
|
WOT
|
D1→D2
|
56-62 {35-38}
|
5,700-6,250
|
|
D2→D3
|
107-115 {67-71}
|
5,800-6,200
|
|
D3→D4
|
151-161 {94-99}
|
5,450-5,800
|
|
TCC ON(D4)
|
156-166 {97-102}
|
4,100-4,300
|
|
Half throttle
|
D1→D2
|
26-34 {17-21}
|
2,600-3,500
|
|
D2→D3
|
48-66 {30-40}
|
2,600-3,550
|
|
D3→D4
|
96-126 {60-78}
|
3,500-4,500
|
|
TCC ON(D4)
|
92-127 {58-78}
|
2,400-3,300
|
|
CTP
|
D4→D3
|
26-32 {17-19}
|
700-800
|
|
D3→D1
|
5-11 {4-6}
|
200-350
|
|
Kickdown (WOT)
|
D4→D3
|
137-147 {85-91}
|
3,600-3,800
|
|
D3→D2
|
94-102 {59-63}
|
3,400-3,650
|
|
D2→D1
|
42-48 {27-29}
|
2,300-2,550
|
|
POWER
|
WOT
|
D1→D2
|
56-62 {35-38}
|
5,700-6,250
|
|
D2→D3
|
107-115 {67-71}
|
5,800-6,200
|
|
D3→D4
|
151-161 {94-99}
|
5,450-5,800
|
|
Half throttle
|
D1→D2
|
31-41 {20-25}
|
3,150-4,150
|
|
D2→D3
|
63-81 {40-50}
|
3,400-4,350
|
|
D3→D4
|
110-134 {69-83}
|
4,000-4,850
|
|
CTP
|
D4→D3
|
34-40 {22-24}
|
900-1,000
|
|
D3→D1
|
5-11 {4-6}
|
200-350
|
|
Kickdown (WOT)
|
D4→D3
|
137-147 {85-91}
|
3,600-3,800
|
|
D3→D2
|
94-102 {59-63}
|
3,400-3,650
|
|
D2→D1
|
42-48 {27-29}
|
2,300-2,550
|
S Range Test (4AT)
1. Perform road test preparation. (See Road Test Preparation.)
2. Shift the selector lever to S range.
3. Accelerate the vehicle at half throttle and WOT, then verify that 1→2 and 2→3 upshifts can be obtained. The shift points must be as shown in the table below.
-
• If not as specified, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
4. Drive the vehicle in 2GR, 3GR, 4GR and verify that kickdown occurs for 4→3, 3→2, 2→1 downshift, and that the shift point is as shown in the table below.
-
• If not as specified, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
5. Decelerate the vehicle and verify that engine braking effect is felt in 2GR, 3GR and 4GR.
-
• If not as specified, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
6. Select HOLD mode.
7. Accelerate the vehicle in 2GR at half throttle and WOT, and verify that 2GR is held.
-
• If not as specified, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
8. Decelerate the vehicle and verify that engine braking effect is felt.
-
• If not as specified, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
Shift point table
|
Range/
Mode
|
Throttle condition
|
Shift
|
Vehicle speed
(km/h {mph})
|
Turbine speed
(rpm)
|
|
S
|
NORMAL
|
WOT
|
S1→S2
|
50-56 {31-34}
|
5,450-6,050
|
|
S2→S3
|
96-104 {60-64}
|
5,550-5,950
|
|
Half throttle
|
S1→S2
|
35-44 {22-27}
|
3,800-4,750
|
|
S2→S3
|
73-92 {46-57}
|
4,200-5,250
|
|
CTP
|
S4→S3
|
145-151 {90-93}
|
4,050-4,200
|
|
S3→S1
|
8-14 {5-8}
|
350-500
|
|
Kickdown (WOT)
|
S3→S2
|
85-93 {53-57}
|
3,300-3,550
|
|
S2→S1
|
39-45 {25-27}
|
2,250-2,550
|
|
HOLD
|
ALL round
|
S4→S3
|
145-151 {90-93}
|
4,050-4,200
|
|
S3→S2
|
95-101 {59-62}
|
3,650-3,850
|
L Range Test (4AT)
1. Perform road test preparation. (See Road Test Preparation.)
2. Shift the selector lever to L range.
3. Accelerate the vehicle at half throttle and WOT, then verify that 1→2 upshift. The shift points must be as shown in the table below.
-
• If not as specified, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
4. Drive the vehicle in 2GR and verify that kickdown occurs for 2→1 downshift, and that the shift point is as shown in the table below.
-
• If not as specified, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
5. Decelerate the vehicle and verify that engine braking effect is felt in 1GR,2GR, 3GR and 4GR.
-
• If not as specified, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
6. Select HOLD mode.
7. Accelerate the vehicle in 1GR at half throttle and WOT, and verify that 1GR is held.
-
• If not as specified, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
8. Decelerate the vehicle and verify that engine braking effect is felt.
-
• If not as specified, inspect the PCM and ATX. (See SYMPTOM TROUBLESHOOTING ITEM TABLE (EXCEPT FOR GENERAL (L.H.D.) SPECS. SPORT AT) [FN4A-EL].)
Shift point table
|
Range/Mode
|
Throttle condition
|
Shift
|
Vehicle speed
(km/h {mph})
|
Turbine speed
(rpm)
|
|
L
|
NORMAL
|
WOT
|
L1→L2
|
50-56 {31-34}
|
5,450-6,050
|
|
Half throttle
|
L1→L2
|
35-44 {22-27}
|
3,800-4,750
|
|
CTP
|
L4→L3
|
145-151 {90-93}
|
4,050-4,200
|
|
L3→L2
|
95-101 {59-62}
|
3,650-3,850
|
|
L2→L1
|
8-14 {5-8}
|
500-800
|
|
Kickdown (WOT)
|
L4→L3
|
143-153 {89-94}
|
4,000-4,250
|
|
HOLD
|
ALL round
|
L4→L3
|
145-151 {90-93}
|
4,050-4,200
|
|
L3→L2
|
95-101 {59-62}
|
3,650-3,850
|
|
L2→L1
|
39-45 {25-27}
|
2,250-2,500
|
P Position Test
1. Shift into P position on a gentle slope. Release the brake and verify that the vehicle does not roll.
