A/C UNIT REMOVAL/INSTALLATION

id071100800200

1. Disconnect the negative battery cable.

2. Discharge the refrigerant from the system. (See RECOVERY.) (See CHARGING.)

3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [LF, L3].)

4. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION.)

Caution

• If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

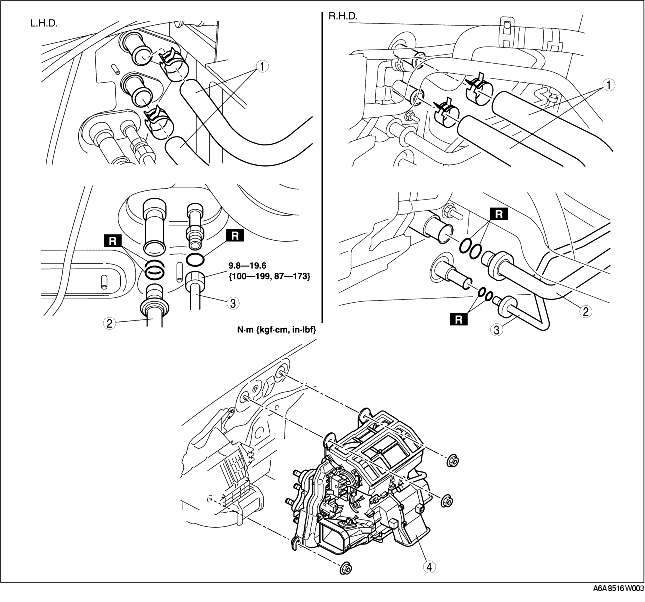

5. Remove in the order indicated in the table. Do not allow compressor oil to spill.

6. Install in the reverse order of removal.

7. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


1	Heater hose
2	Cooler pipe No.4 (R.H.D.) or cooler hose (LO) (L.H.D.) (See Refrigerant Lines Removal Note) (See Refrigerant Lines Installation Note)
3	Cooler pipe No.3 (See Refrigerant Lines Removal Note) (See Refrigerant Lines Installation Note)
4	A/C unit
