BLOWER UNIT REMOVAL/INSTALLATION


id071100800500

1. Disconnect the negative battery cable.

2. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION.)

3. Remove the A/C unit. (See A/C UNIT REMOVAL/INSTALLATION.)

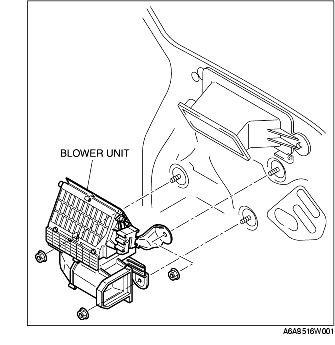

4. Remove the blower unit.

5. Install in the reverse order of removal.
