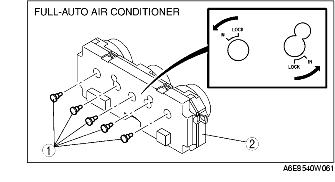

1. Disassemble in the order indicated in the table.
|
1
|
Fan switch
|
|
2
|
Air mix wire
(See Wire Disassembly Note)
(See Wire Assembly Note)
|
|
3
|
Airflow mode wire
(See Wire Disassembly Note)
(See Wire Assembly Note)
|
|
4
|
Body
|
2. Assemble in the reverse order of disassembly.

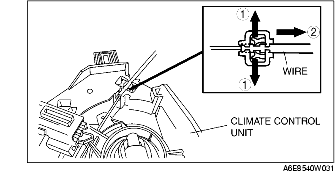

1. Disassemble the wires in the shown in the figure.

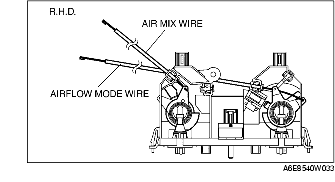

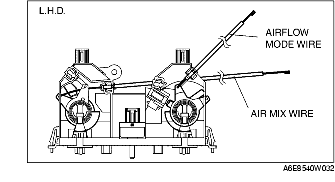

1. Assemble the wires to the position as shown in the figure.
